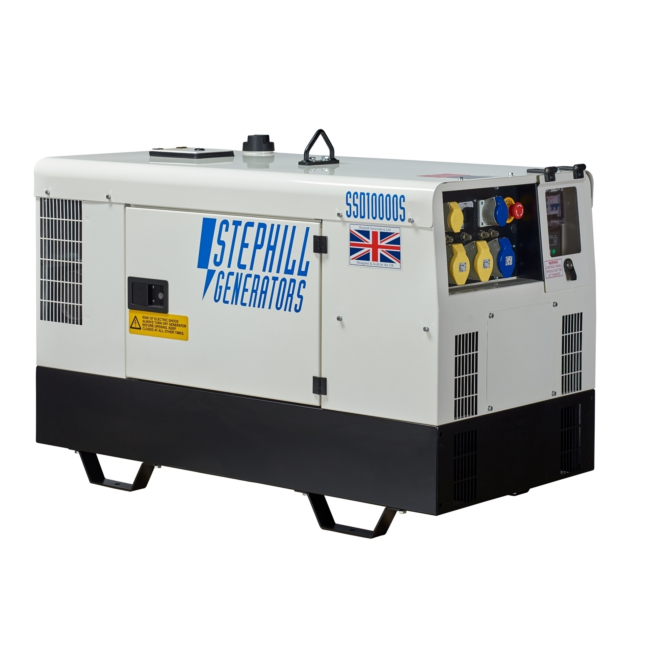

The Stephill SSD10000S water cooled diesel generator is a quiet, top of the range Stephill diesel generator features a Kubota water cooled engine for ultimate quality and reliability. The engine is close coupled to a Mecc Alte alternator. Due to Stephills superior manufacturing techniques this diesel generators leads the others standing with its class leading noise levels.
All SSD range generators are built to an extremely high specification and are available in static as standard with the option of site tow or road tow trailer form. All generators feature high quality close fitting weather-proof acoustic canopies, overload protection, LOP/HET shutdown and long run bunded fuel tanks.
Features:
CONTROL PANEL:
Key start / stop, MCB, RCD 230v, low oil, high engine temperature, and low battery warning lights. Hours run meter. Fuel gauge. Emergency stop switch, BS4343 industrial sockets; 1x16a & 2x32a 115v, 2x16a & 1x32a 230v.
ENGINE:
Kubota D722, 2 cylinder water cooled diesel. Electric start/stop with low oil pressure and high engine temperature shutdown. 12v battery charging system.
ALTERNATOR:
Brushless maintenance free alternator, single bearing.
FUEL TANK:
Integral 37litre tank giving 13 hours continuous use at 75% load.
CANOPY:
Steel panelled acoustic / weather-proof enclosure with large lockable access doors for maintenance. Heavy duty hinges. Lifting beam / eye. Mild steel powder coat finish.

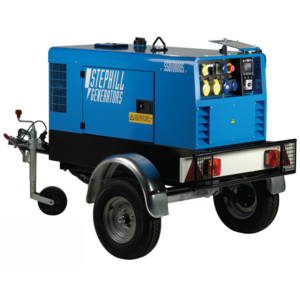

Optional HT1 trailer - This trailer will allow you to tow the SSD10000 generator on the road or site easily and safely. (BALL HITCH & NON-BRAKED). Code: HT-1.
| Art No | SSD10000S |
|---|---|
| Brand | Stephill |
| Power Details | Kubota D722, 2 cylinder water cooled diesel |
| Phase | Single Phase |
| Fuel Type | Diesel |
| Rated Watts (W) | 8000 |
| Max Watts (W) | 8000 |
| KVA | 10 |
| Voltage | 230V / 115V |
| Rated Frequency (Hz) | 50 |
| Sockets | 1 x 16A 115v & 2x 32A 115v 2x16A 230v & 1x32a 230v |
| Fuel tank Capacity | 37 Litres |
| Running Time | 13 Hrs |
| Dimensions (L x W x H) | 1285x 655 x 900 mm |
| Starting Method | Electric |
| Noise Value - Sound Power Level dB(A) | 69 |
| Weight | 301 kg |
| Warranty | 12 Months |
