Work anywhere
Take a 230V wall socket with you – power any device no matter where you are.
Fast charging
Full charge in 3 hours. Charge Instagrid ONE in the middle of your workday.
Robust & weather-proof
IP54 rating. Work in any conditions, unaffected by dust or water.

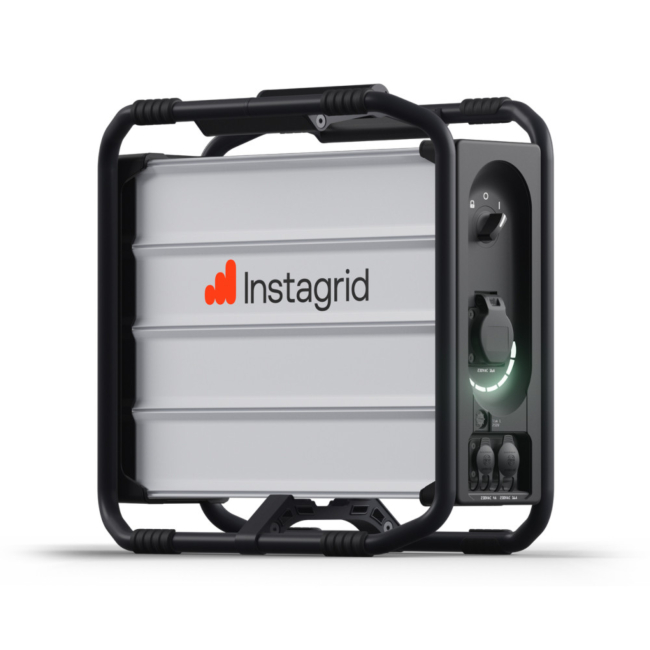

The Instagrid ONE 230 V redefines portable power for professionals. Designed to mimic a 230 V wall socket, it delivers 3.6 kW continuous output (16 A) and can handle surges up to 18 kW (80 A) - ideal for high-load tools and equipment. Powered by 2.1 kWh of battery energy packed into just 20 kg, it strikes a remarkable balance of portability and performance. It fully recharges in under 3 hours, keeping your workday flowing without interruptions.
Built to withstand the elements, the unit boasts an IP54 rating, making it resilient against dust and water - perfect for outdoor and on-site applications. Its innovative design replaces the traditional bulky central inverter with distributed micro-inverters housed within battery modules, resulting in a lighter, more efficient system that outputs a clean AC sine wave.
Coupled with the Instagrid App, you gain full control and oversight through features like fleet management, location tracking, and usage statistics - enhancing your operational efficiency.
There are many mobile battery systems on the market, and they are more or less built the same way: a bank of batteries connected to a central inverter. We do things differently. We break down this central inverter into multiple micro-level inverters, each connected to an individual battery module. Using software and electronics, these modules work together to generate a pure AC sine wave.
This innovation is a significant advance in power conversion technology and enables Instagrid products to be drastically smaller, lighter, and more powerful than other battery systems.
Instagrid APP provides you highly useful insights into your daily energy needs. Do you want to know all about Instagrid APP? Then download our brochure.
Output voltage: 230 V (AC) / 50 Hz
Weight: 20 kg
Rated power output: 3.6 kW (16 A)
Peak power: 18.0 kW (80 A)
IP Class: IP54
Rated energy capacity: 2.1 kWh
Operating temperature: - 20 °C to 60 °C
Charge duration: < 3 h up to 100%
On (idle): 150 h
Storage: > 3 years (switch in “off” or “transport” mode)
Output socket: BS1363-2 (13 A)
Output socket: Neutrik powerCON TRUE1 TOP®
Input charging socket: Neutrik powerCON TRUE1 TOP®
Noise emissions: < 10 dB(A)
| Art No | INSTAGRIDONE |
|---|---|
| Brand | Instagrid |
| Power Details | 2.1 kWh lithium battery capacity |
| Rated Watts (W) | 3600 |
| Max Watts (W) | 18000 |
| Sockets | Output: BS1363-2 (13 A) Neutrik powerCON TRUE1 TOP® // Input: Neutrik powerCON TRUE1 TOP® |
| Noise Value - Sound Power Level dB(A) | < 10 dB(A) |
| Weight | 20kg |
